Shinwoo SWT-0007N Chamfering Machine

Contact

  • Origin: Shinwoo (South Korea)

  • Features: Precise chamfering, diverse chamfering types, easy operation and maintenance, high power.

  • Applications: Marine, construction, mechanical engineering, energy.*

  • KentaVietNam is the exclusive distributor of Shinwoo Chamfering Machines in the Vietnamese market.

0961 909 992

READY TO SUPPORT YOU
24/24 Hotline
0961 909 992

Always in stock, ready to stock

The product is always available at 2 physical warehouses

Always Genuine

34/20000 Full Exclusive Signing Certificate

Always the fastest delivery

Fast delivery as soon as the checkout is completed

Description

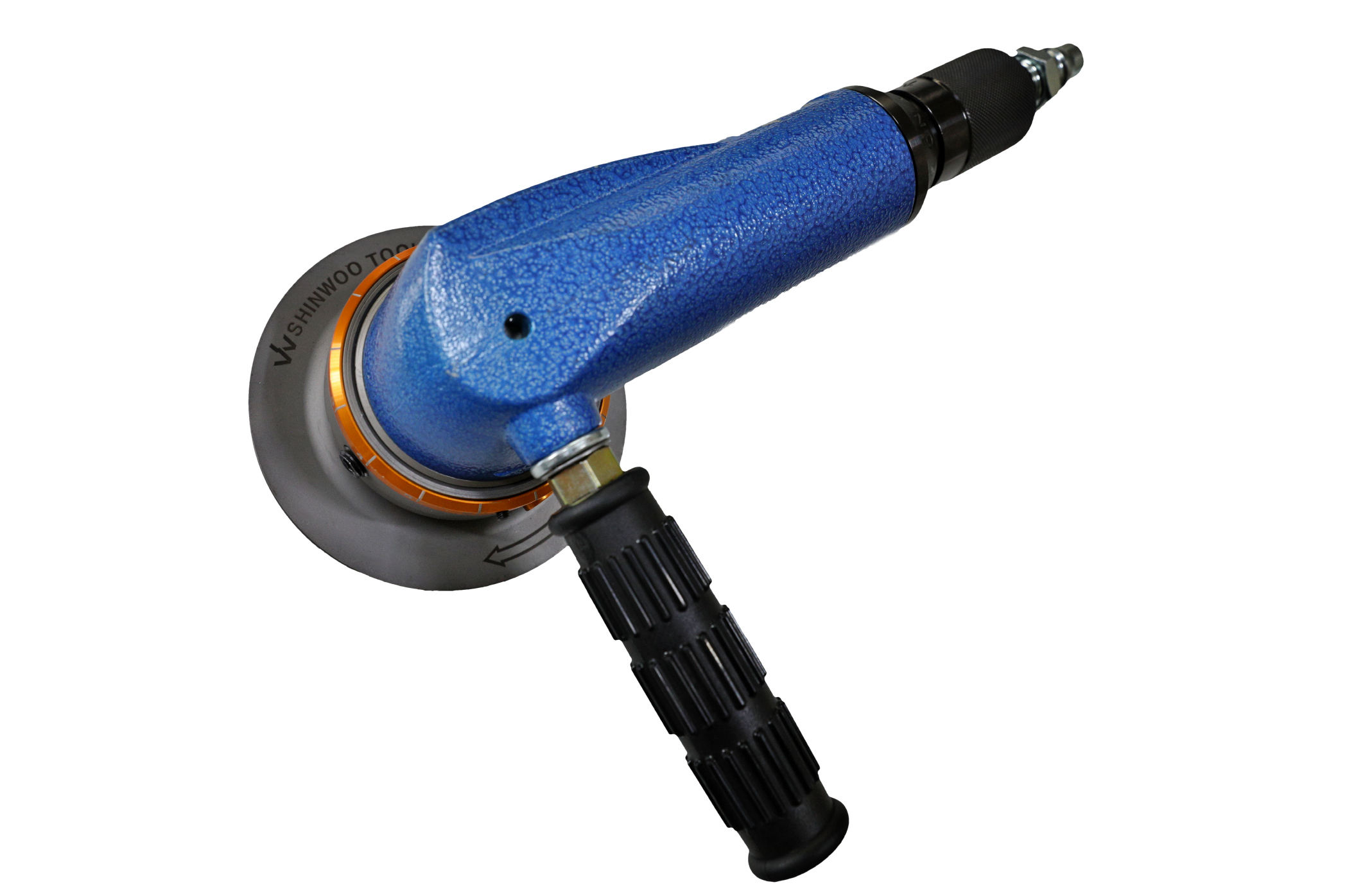

The Shinwoo SWT-0007N chamfering machine is a specialized product for chamfering long steel plates. This is the most preferred product in shipbuilding and mechanical engineering, providing high efficiency and flexibility in work.

The technical specifications of the SWT-0007N pneumatic chamfering machine are:

– Motor: Air 7”
– Length: 270 mm
– Weight: 3.145 kg
– Chamfering range: Used for chamfering long steel plates, high frequency of use
– Chamfering speed: 3m/min
– Maximum rotation speed: 7,500 rpm
– Power: 1.3HP
– Chamfering depth: 2-5mm
– Blade options: R-radius blades (R2-8F, R3-8F, R4-8F, R5-8F, R6-10F, R8-10F)
C-angle blades (C15-08T, C22-08T, C30-08T, C37-08T, C45-08T, C52-08T, C60-08T)
– Air flow: 5-6kg

Features of the SWT-0007N pneumatic chamfering machine are:

– Compact size for a high-power machine
– Wide application as it can chamfer both C-angles from 15-60 degrees and R-radii from R2-R8
– This is the most preferred product in the shipbuilding industry due to its high efficiency and flexibility in work.

The SWT-0007N pneumatic chamfering machine is widely used in shipbuilding, mechanical engineering, steel structures, etc.
